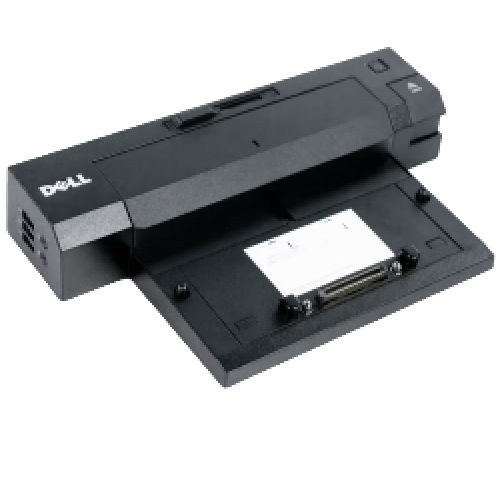

Dell E-Port Plus Advanced Port Replicator

The Dell E-Port Plus Advanced Port Replicator (Model: K07A) is a heavy-duty, mechanical docking station engineered exclusively for enterprise-class Dell Latitude E-Series legacy laptops. Featuring a proprietary high-pin-count bottom docking connector, it extends a laptop's desktop footprint into a full-scale workstation infrastructure by consolidating power, network, legacy communication, and comprehensive multi-display video channels into a single mechanical click-in interface.

---

Technical Specifications

Specification Category	Detailed Parameters
Product Classification	E-Port Plus Advanced Port Replicator / Docking Station
Regulatory Model	K07A
Regulatory Type	K07A002
Dell Part Number (DP/N)	WV7MW (A02 revision profile)
Docking Interface	Proprietary Dell E-Series mechanical docking connector (top mount platform)
Input Power Requirements	19.5V === 6.7A (130W adapter input) OR 12.3A (240W high-performance adapter input)
Video Engine Architecture	Dual digital video buses routing independently up to dual external displays
Safety & Regulatory Certifications	TUV, GS, CE, FCC, UL, NOM, NYCE, EAC, VCCI, KC, IC Class B ICES-003
Manufacturing Origin	Made in China

---

Input / Output Interface Ports

• Display & Video Routing Outputs:
  • 2 × 24-pin DVI-D (Digital Only) connectors
  • 2 × 20-pin DisplayPort 1.2 digital video interfaces
  • 1 × 15-pin VGA (D-Sub) analog monitor port
• Legacy Communication Ports:
  • 1 × 9-pin Serial Communication (RS-232) interface port
  • 1 × 25-pin Parallel Printer (IEEE 1284) interface port
  • 2 × 6-pin PS/2 legacy peripherals ports (Dedicated Keyboard and Mouse links)
• Data & Networking Hub:
  • 1 × Gigabit Ethernet Network Port (RJ-45)
  • 2 × SuperSpeed USB 3.0 ports (Blue color-coded, available on updated models)
  • 3 × High-Speed USB 2.0 ports
  • 1 × Combined eSATA / USB 2.0 multi-port
• Audio System Links:
  • 1 × 3.5mm Microphone In Audio jack
  • 1 × 3.5mm Headphone Out/Speaker Line Out jack

---

Key Technical Features

• Comprehensive Multi-Monitor Display: Safely drives dual digital monitors simultaneously through native matching pairs of DVI or DisplayPort connections without utilizing system daisy-chain splits.
• Mechanical Alignment Design: Features an optimized integrated positioning slider designed to accurately match up differing battery physical chassis outlines for clean lock-down connections.
• Zero Software Footprint: Completely hardware-driven docking system handles immediate native interface mapping without requiring active USB driver operating system layers or firmware intervention.
• Kensington Security Integration: Rear integrated locking slot interface allows single-key combination lock-downs targeting the docking body as well as blocking laptop release levers.

---

Compatibility Reference

This dock matches up natively with legacy enterprise models spanning the Dell Latitude E-Family line including:

• Latitude E5430 / E5440 / E5450 / E5470
• Latitude E5530 / E5540 / E5550 / E5570
• Latitude E6420 / E6430 / E6440
• Latitude E6520 / E6530 / E6540
• Latitude E7240 / E7250 / E7270 / E7440 / E7450 / E7470
• Dell Precision Mobile Workstations (E-Series dependent variants requiring 240W power inputs)

• Availability: 2 In Stock
• Model: Dell K07A
